Active
D/A Converters

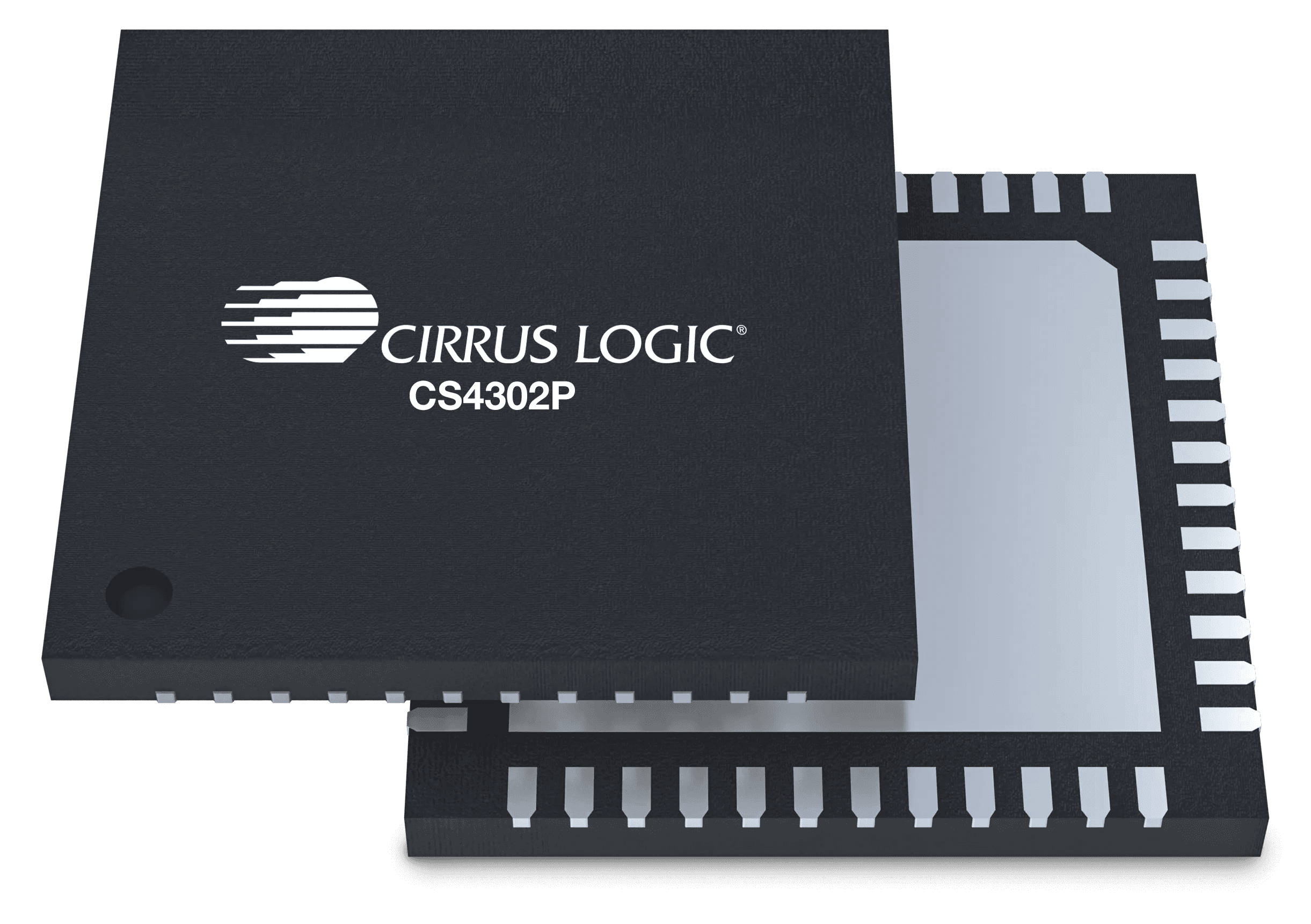

CS4302P

High-performance 2-channel digital-to-analog converter
View Datasheet (opens in new tab)

CS4302P Overview

The CS4302P is a 2-channel, 32-bit resolution audio DAC supporting sample rates of up to 768 kHz. The CS4302P’s proprietary filtering adapts to preserve clarity and tonal accuracy across sample rates of 44.1 kHz to 768 kHz, creating a consistent sound that stays balanced independent to the content users are playing. Compared to alternative solutions that rely on specialized low-noise supplies, the CS4302P achieves 128 dB dynamic range without added BOM cost and complexity.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance Stereo DAC

    • Differential analog outputs

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • PLL supports range of external system-clock references

  • Synchronous operation across multiple devices

  • Audio serial port (ASP) sample rates up to 768 kHz

    • I2S, left-justified, and TDM data formats

    • DSD up to 512xfs

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Channels Out2
DAC Dynamic Range (dB)129
DAC THD+N (dB)-115
Sample Rate (kHz)768
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Output Level (Vrms)2
Target MarketPro Audio
Features129 dB dynamic range (A-weighted), –115 dB total harmonic distortion + noise, Advanced digital filters
Package48 QFN

Design Resources

CAD DIAGRAM

CS4302P-DN

View and download CAD drawings
Page 1 of 4
Browse all resources

Evaluation Boards

  • CS4302P D/A Converter Evaluation Board (DC4302P-DAC)

    CS4302P D/A Converter Evaluation Board (DC4302P-DAC)

    The DC4302P-DAC evaluates the Cirrus Logic CS4302P high-performance DAC. A daughter card for the CDB-PROAUDIO system, it supports DSD input, S/PDIF I/O and configurable DAC output routing.

    Order SampleUser Guide
  • Pro Audio Evaluation System (CDB-PROAUDIO)

    Pro Audio Evaluation System (CDB-PROAUDIO)

    The CDB-PROAUDIO is the motherboard platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides analog and S/PDIF I/O, 8-channel USB streaming via the Jura module, and accepts device-specific daughter cards.

    Order SampleUser Guide
  • ETLUM2-SOM USB Control Audio Streaming Board

    ETLUM2-SOM USB Control Audio Streaming Board

    Order Sample

Software Packages

Loading CS4302P_SCS_Package...

Pricing

Part Number

Container

Grade

Temp

Budgetary Price

Sample

CS4302P-DN
Tray
Commercial
–40 to +85°C
$
Type something
8.65
1ku
Request Sample
CS4302P-DNR
Tape and Reel
Commercial
–40 to +85°C
$
Type something
8.65
1ku
Request Sample
DC4302P-DAC
Daughter Card
Type something
Type something
$
168
Type something
Board
Request Sample
CDBPROAUDIO
Base Platform
Type something
Type something
$
696
Type something
Board
Request Sample
ETLUM2-SOM
USB Audio Streaming Board
Type something
Type something
$
222
Type something
Board
Request Sample
Type something
Type something
*Prices are shown in USD and are non-binding, indicative pricing provided for reference only and are subject to change without notice.
Nothing on this page constitutes an offer for sale or other binding commitment. For bulk ordering, contact one of our distributors.
