A/D Converters

CS5308P

High-performance 8-channel analog-to-digital converter
View Datasheet (opens in new tab)

CS5308P Overview

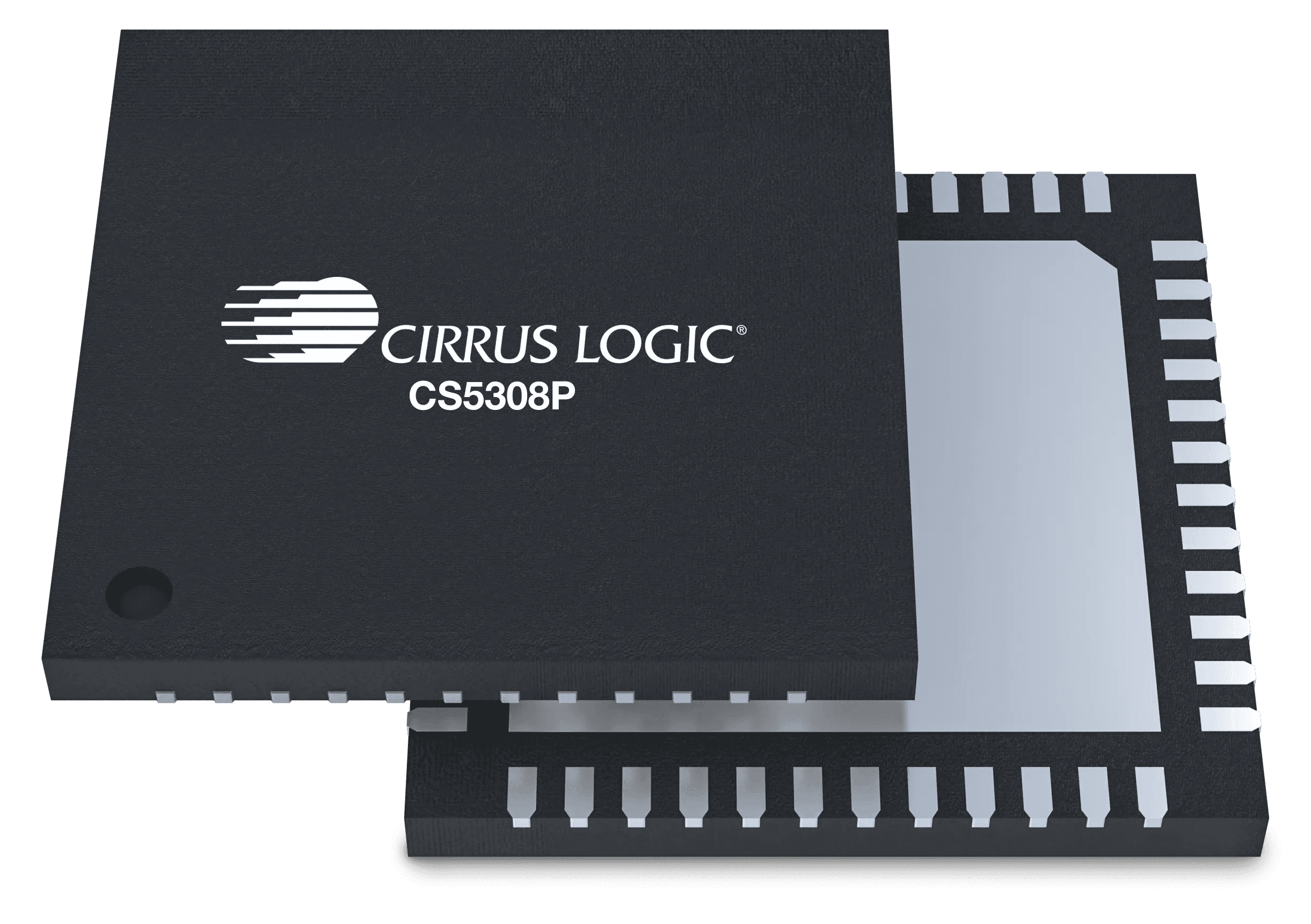

The CS5308P is an 8-channel audio ADC providing 32-bit resolution at a rate of up to 768 kHz. The CS5308P’s integrated hybrid gain control feature reduces the external pre-amp control circuitry, offering a reduced BOM and simplified design when compared with alternative solutions. The CS5308P is ideal for applications that require a combination of both high-performance and low power, offering >120 dB dynamic range and THD+N below –110 dB, all within a 25 mW/ch power budget.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance eight-channel ADC

    • Differential analog architecture

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • PLL supports range of external system-clock references

  • Synchronous operation across multiple devices

  • Hybrid gain control

  • Audio serial port (ASP) sample rates up to 768 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Analog Input TypeDifferential
Channels In8
ADC Dynamic Range (dB)123
ADC THD+N (dB)-110
Sample Rate (kHz)768
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Operational Power Consumption (mW)200
Target MarketPro Audio
Features123 dB dynamic range (A-weighted), –110 dB total harmonic distortion + noise, High-pass filter and DC-offset calibration
Package48 QFN

Design Resources

CAD DIAGRAM

CS5308P-DN

View and download CAD drawings
Page 1 of 4
Browse all resources

Evaluation Boards

  • CS5308P A/D Converter Evaluation Board (DC5308P-ADC)

    CS5308P A/D Converter Evaluation Board (DC5308P-ADC)

    The DC5308P-ADC evaluates the Cirrus Logic CS5308P high-performance 8-channel ADC. A daughter card for the CDB-PROAUDIO system, it offers S/PDIF output, hardware and software control modes and configurable input routing.

    Order SampleUser Guide
  • Pro Audio Evaluation System (CDB-PROAUDIO)

    Pro Audio Evaluation System (CDB-PROAUDIO)

    The CDB-PROAUDIO is the motherboard platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides analog and S/PDIF I/O, 8-channel USB streaming via the Jura module, and accepts device-specific daughter cards.

    Order SampleUser Guide
  • ETLUM2-SOM USB Control Audio Streaming Board

    ETLUM2-SOM USB Control Audio Streaming Board

    Order Sample
