D/A Converters

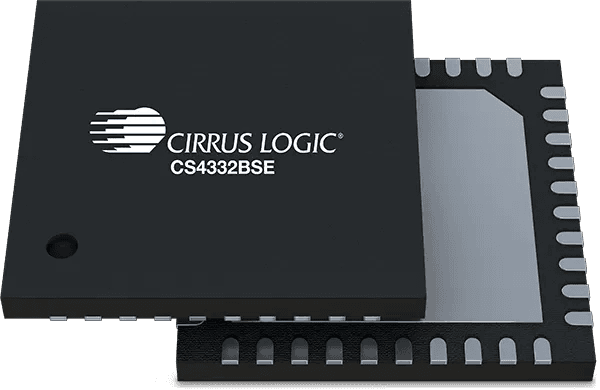

CS4332BSE

High-performance 2-channel digital-to-analog converter
View Datasheet (opens in new tab)

CS4332BSE Overview

The CS4332BSE is part of a new series of pro-audio converters aimed at giving cost-effective transparent audio conversion. All within one device that is easy to use and provides system level cost savings. The CS4332BSE is a high-performance, 32-bit resolution, two-channel DAC. The CS4332BSE supports single-ended analog outputs and 32-bit digital input via the audio serial port (ASP) at sample rates up to 384 kHz. The voltage-output CS4332BSE incorporates a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of over 115 dB and THD+N below -107 dB. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making it both flexible and easy to integrate. This, together with Cirrus Logic’s advanced digital filters, makes the CS4332BSE ideal for digital mixing consoles, DAW interfaces, effects processors, musical instruments and audio/video receivers.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance two-channel DAC

    • Single-ended analog architecture

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • Crystal oscillator interface

  • Sample timing alignment across multiple devices

  • Audio serial port (ASP) sample rates up to 384 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Analog Output TypeSingle-ended
Channels Out2
DAC Dynamic Range (dB)115
DAC THD+N (dB)-107
Sample Rate (kHz)384
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Target MarketPro Audio
Package40 QFN

Design Resources

Browse all resources

Evaluation Boards

  • CS4332BSE D/A Converter Evaluation Board (DC4332BSE-DAC)

    The DC4332BSE-DAC evaluates the Cirrus Logic CS4332BSE high-performance two-channel audio DAC. A daughter card for the CDB-PROAUDIO system, it connects via a JURA module and offers selectable line and headphone output buffering.

    User Guide
  • Pro Audio Evaluation System (CDB-PROAUDIO)

    Pro Audio Evaluation System (CDB-PROAUDIO)

    The CDB-PROAUDIO is the motherboard platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides analog and S/PDIF I/O, 8-channel USB streaming via the Jura module, and accepts device-specific daughter cards.

    Order SampleUser Guide
  • ETLUM2-SOM USB Control Audio Streaming Board

    ETLUM2-SOM USB Control Audio Streaming Board

    Order Sample
